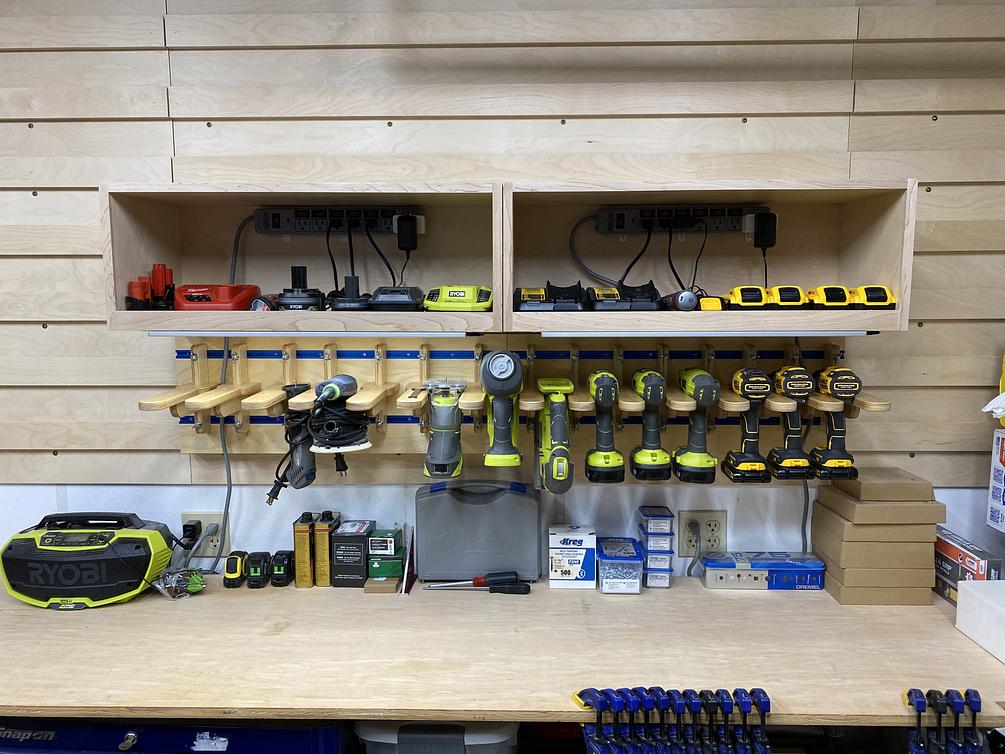

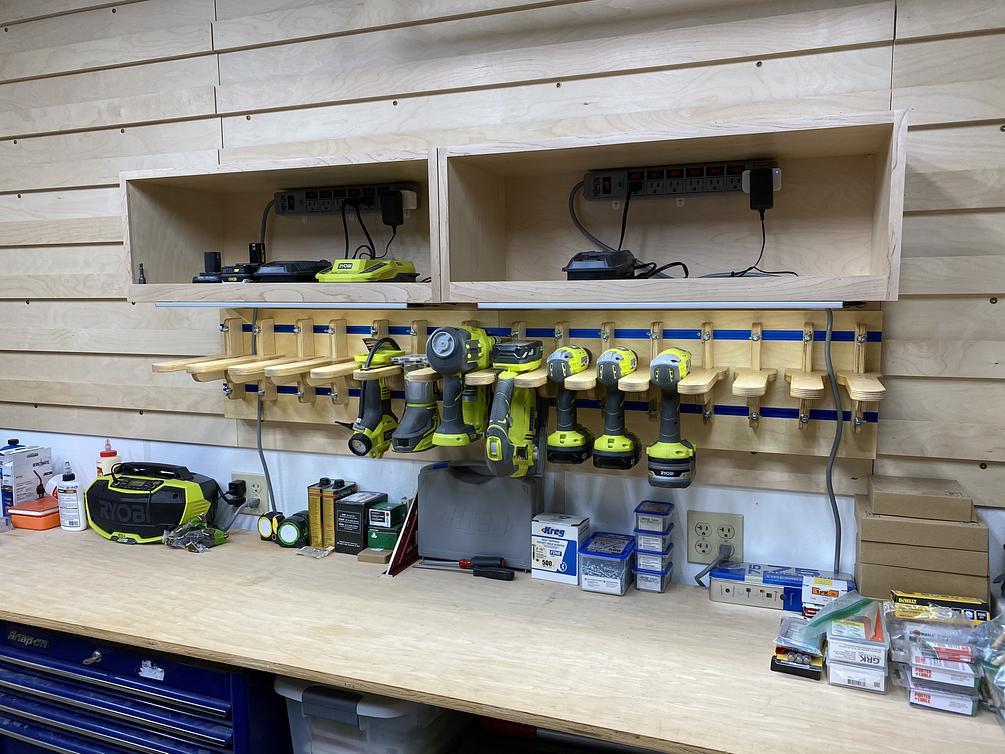

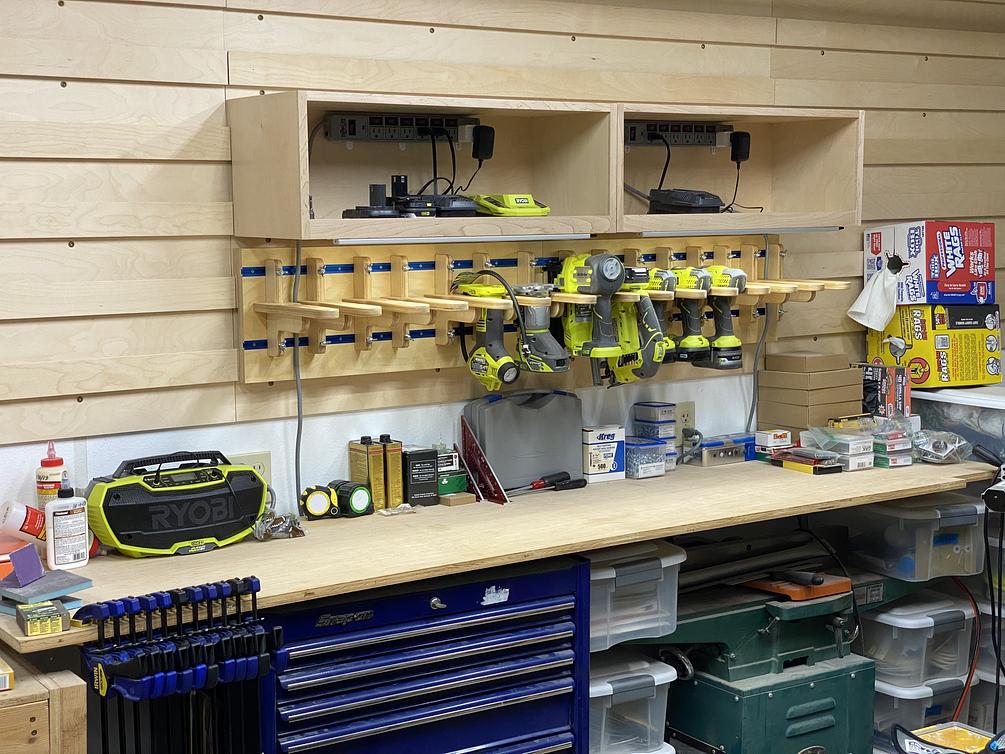

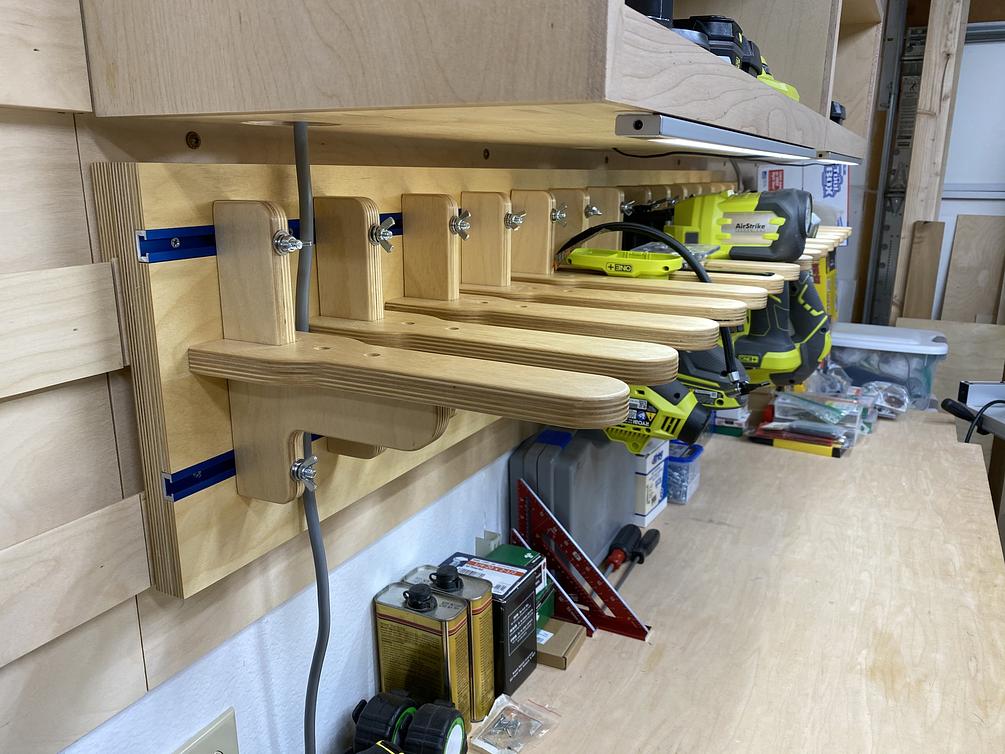

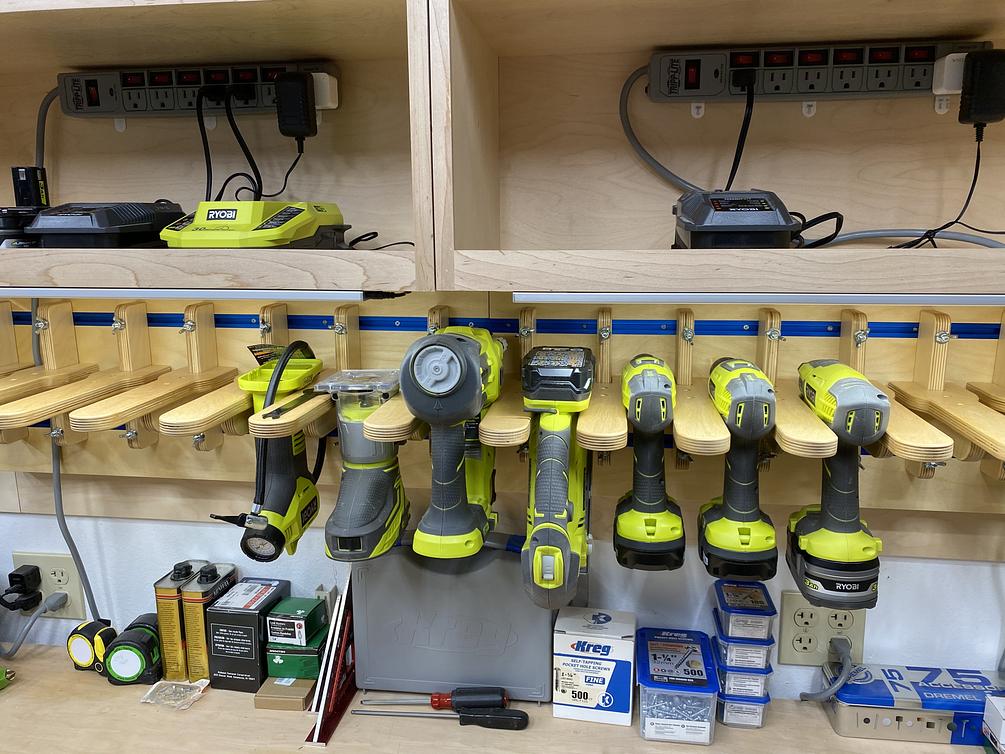

I've been wanting to build a tool charging station for a long time now, but there was always something that bothered me. Once you build the hangers for the tools if you end up replacing a tool and it has a different width or you want to change the layout of the tools, then you have to adjust the hangers and maybe even cut new ones to match the tools. I decided to make a tool charging station where the width could be adjusted easily as needed.
I also wanted to make the tool hanger expandable in case someone wanted to make more storage later.
This tool charging station was built to hang on a french cleat wall, but can easily just be attached to a wall with screws or with individual cleats.
This package includes the following items for your personal use:

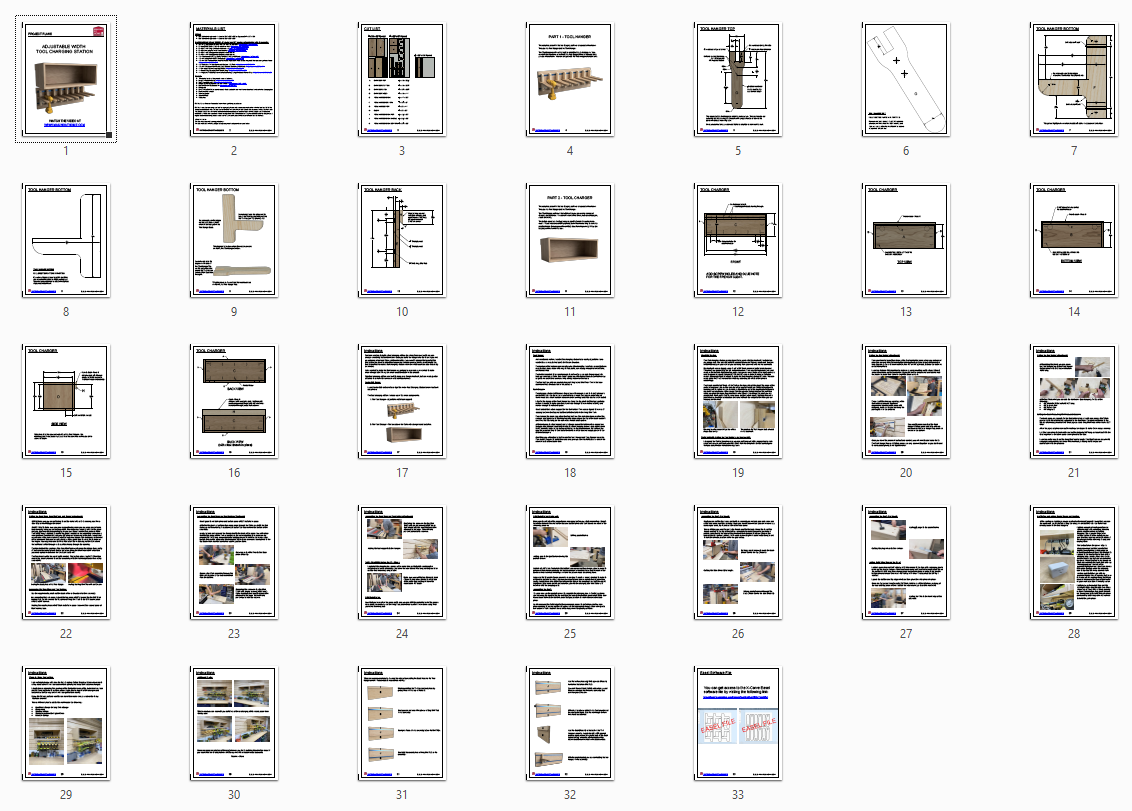

PDF Plans - download includes 32 pages of pictures and diagrams with step by step details, and material list.
Easel Link - Link to the cut file that you can import in to Easel software for the X-Carve CNC. This link is included on the last page of the PDF Plans.
Fusion 360 file - a Fusion 360 f3d design file for your personal use and editing as you see fit. You will need to have a Fusion 360 account and the software downloaded to use this file.
DXF Files - DXF file of the two tool hanger pieces in case you want to import into your own CNC software.
This listing is for digital files only. Nothing will be mailed to you.
These digital files are for personal use only. Resale of the digital files is not allowed.
